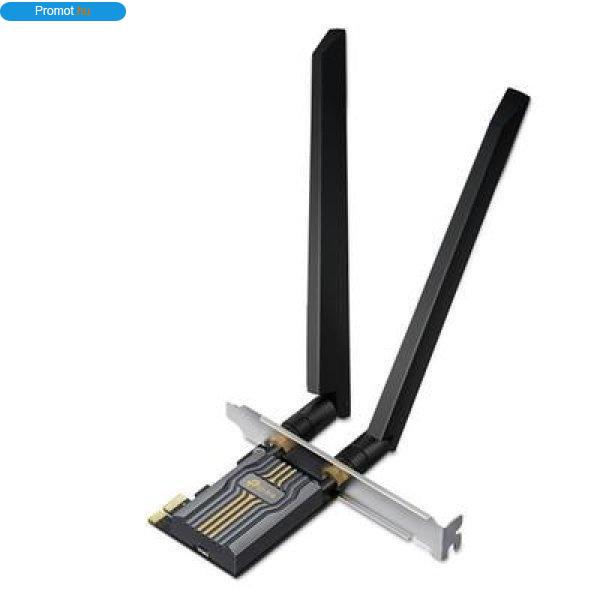

TP-LINK Wireless és Bluetooth 5.4 Adapter PCI-Express Dual Band BE6500, ARCHER
TBE400E HARDWARE FEATURES
Dimensions 4.8 × 3.09 × 0.85 in (120.8 ×78.5 ×21.5 mm)
Antenna Type 2× High-Performance Tri-Band Antennas
WIRELESS FEATURES Wireless
Standards IEEE 802.11a/b/g/n/ac/ax/be WLAN Signal Rate
6 GHz: 11be: Up to 2882 Mbps(dynamic) 11ax: Up t0
2402Mbps(dynamic) 5 GHz: 11be: Up to 2882 Mbps(dynamic) 11ax:
Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to
300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11be:
Up to 688 Mbps(dynamic) 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300
Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11
Mbps(dynamic) WLAN Reception Sensitivity 6 GHz:
11ax HE20 MCS0: -94 dBm 11be EHT320 MCS13: -44dBm 5 GHz:
11ac VHT20 MCS0: -94 dBm 11be EHT160 MCS13: -48dBm 2.4 GHz:
11n HT20 MSC0: -95 dBm 11be EHT40 MSC13: -56dBm
WLAN Transmit Power 2.4 GHz: 24dBm(FCC) (EIRP)/ 20dBm(CE) (EIRP)
5 GHz: 24dBm(FCC) (EIRP) /20dBm(CE) (EIRP) 6 GHz: 20dBm(FCC) (EIRP)
/20dBm(CE) (EIRP) WLAN Modes Infrastructure mode
Wireless Security WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
OTHERS Certification
FCC/CE/IC/NCC/JRF/VCCI/BSMI Package Contents
Archer TBE400E 2x High-Performance Antennas Low-Profile
Bracket Bluetooth Header Cable Quick Installation Guide
Resource CD System Requirements Supported
operating system: Windows 11(64-bit) only Environment
Operating Temperature: 0?~40? (32? ~104?) Storage Temperature:
-40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing Accessories
Specifications Bluetooth Header Cable Length: 0.3 m
