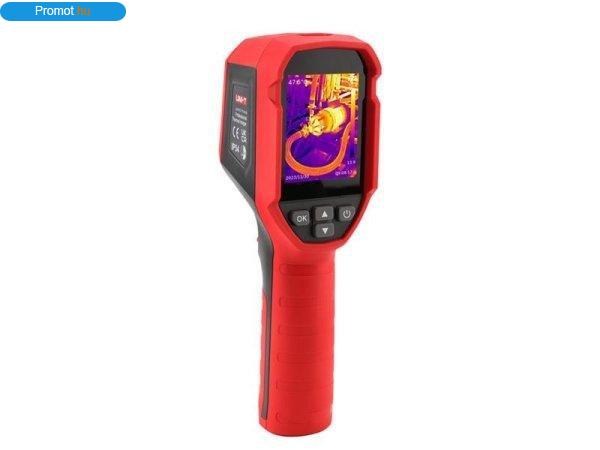

UNI-T UTi716S is a cost-effective thermal imager and is equipped with a 12?m
infrared detector with a resolution of 160×120 pixels and a 2MP digital camera,
combined with Super Resolution and T-Mix technology with automatic adaptive dual
fusion algorithm to generate high-resolution infrared images with visible
details. Its extended temperature measurement range, built-in LED light and
laser pointer meet the requirements of multiple application scenarios. The
four-button and lightweight design make inspection easier. It is widely used in
HVAC systems, automotive inspections and power plants. Product parameters: -
infrared resolution 160×120 pixels / 12 ?m) - temperature measurement range from
-20°C to 550°C - 2MP digital camera - equipped with T-Mix dual light image
fusion algorithm technology - multilingual operating system - with LED light and
laser pointer - IP54 protection level - resistance to falling from a height of 2
m Technical parameters: - 2.4? TFT display (320 x 240) - infrared resolution:
160 x 120 pixels - super resolution: 320 x 240 pixels - measurement in the
infrared spectral band: 8 ?m to 14 ?m - thermal sensor pixel size: 12 ?m - frame
rate: ? 25 Hz - thermal sensitivity (NETD): ? 50mK - mode focus: Focus Free -
Field of View (FOV): 40°(H) x 30°(V) - Temperature measurement range: -20? to
550? - Accuracy ą2°C or ą2% whichever is greater - Color swatch palette for
thermal image transposition: (White Hot, Black Hot, Red Hot, Ironbow, Lava,
Rainbow, Rainbow HC) - Image modes: Thermal, Visual Image, T-Mix, Fusion, PIP -
LCD animation of high/low temperature alarm, LED flashlight, buzzer - highest
and lowest temperature monitoring in the image - Digital camera resolution: 2 MP
- Laser pointer - LED flashlight: yes - PC analysis software - Power supply:
Li-ion battery 2600 mAh rechargeable - Operating time ?6 hours - USB type - C -
Memory: built-in, 32 GB - Image storage format JPG - IP65 protection and drop
resistance height 2 m - certification: : CE, FCC, RoHS - weight: 600 g - product
dimensions: 236 x 75.5 x 86 mm
