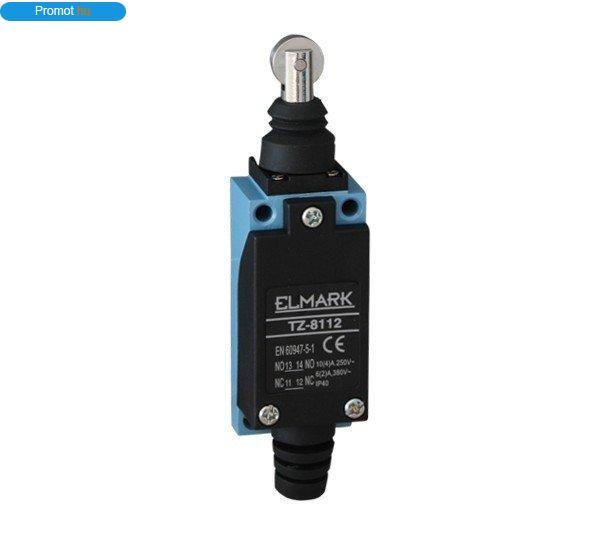

HELYZET KAPCSOLÓ TZ-8112
Technical characteristics: - Dielectric strength: 1000V AC - Insulation
resistance: 100m? - Contact resistance: 25m? - Electrical wear resistance
(number of cycles): 500000 with active load - Mechanical wear resistance (number
of cycles): 5000000 - Gearing speed: 5mm/s to 0.5m/s - Rated voltage: 230V - IP
code: IP40 - Cable input: cable gland PG11 - Section of the power supply
conductor: up to 2.0mm - Fastening strenght of terminals: 6-8kgf/cm Standards:
EN60947-1; EN60947-5-1
resistance: 100m? - Contact resistance: 25m? - Electrical wear resistance
(number of cycles): 500000 with active load - Mechanical wear resistance (number
of cycles): 5000000 - Gearing speed: 5mm/s to 0.5m/s - Rated voltage: 230V - IP
code: IP40 - Cable input: cable gland PG11 - Section of the power supply
conductor: up to 2.0mm - Fastening strenght of terminals: 6-8kgf/cm Standards:
EN60947-1; EN60947-5-1
Adatlap
| Ár: | 2.309 Ft |
| Termék besorolása: | Egyéb barkács börze |
| Feladás dátuma: | 2025.08.28 |
| Eddig megtekintették 6 alkalommal | |
