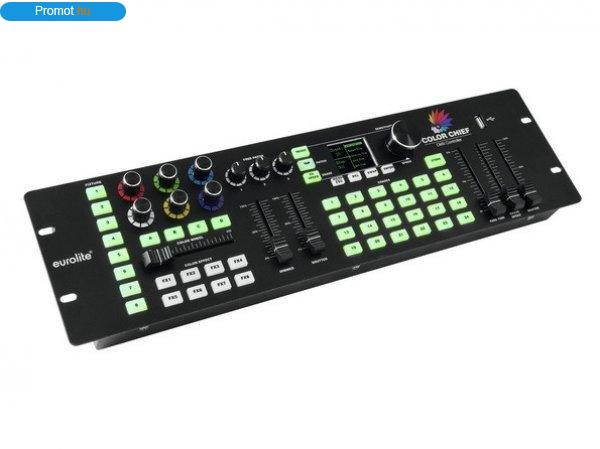

DMX lighting desk with innovative control concept for LED spotlights Easy
control of LED spotlights with up to 6 colors, light bars as well as simple
lighting effects For 8 devices or device groups, each with up to 4 segments Each
device can occupy up to 30 channels Quick and easy programming Eurolite KLS
systems and LED spotlights already in the library Additional fixtures can be
configured manually 8 color effects directly selectable 3 additional channels
available per fixture (e.g. for rotations) Color wheel selection and
simulation 24 memory spaces for scenes and chases Several chases can be run
simultaneously USB port for data storage of lighting programs Sound control via
audio signal or TAP button Master dimming, fade time and run time easily
adjustable 3-pin XLR connector Firmware update via USB Desktop console Control:
Sound to light via RCA (f) mounting version; Sound to light via Microphone;
DMX Housing design: (19") 48.3 cm rack installation 3 U Power
supply: 100-240 V AC, 50/60 Hz 9 V DC 800 mA Power consumption: 10
W IP classification: IP20 Power connection: Mains input Coaxial
power connector (M) Power supply cord with AC adapter
(provided) Programs: 24 Sequences DMX channels: Output
240 DMX output: 1 x 3-pin XLR (F) mounting
version Control: Sound to light via RCA (f) mounting
version   Sound to light via
Microphone   DMX Color: Black Housing
color: Black Available storage media: USB devices (FAT 32) USB
port: Typ A Housing design: (19") 48.3 cm rack installation 3
U Width: 48.3 cm Height: 8.5 cm Depth: 13.35
cm Weight: 2.25 kg
